BIRO

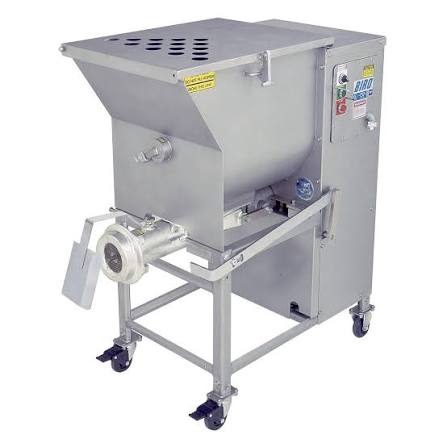

BIRO AFMG-2448 Mixer Grinder
BIRO AFMG-2448 Mixer Grinder
BIRO AFMG-2448 Mixer Grinder
The BIRO AFMG-2448 combines the 140 lb hopper capacity of the AFMG-24 with the size-32 grinding head of the AFMG-48 - delivering powerful, consistent performance for busy butcher shops, supermarkets, and processors who need reliable throughput every day. With output rates up to 68 lb per minute, heavy-duty stainless steel construction, and a washdown-ready design, the AFMG-2448 is engineered to keep your production line moving shift after shift. Backed by BIRO’s reputation for reliability since 1921.
High-Volume Output, Compact Footprint
The AFMG-2448 gives you the mixing power of the AFMG-24 and the grinding strength of the AFMG-48 in one efficient machine. A 140 lb hopper, size-32 stainless bowl and auger, and a standard 2nd-grind paddle deliver smooth, uniform product mix and fast, consistent grind cycles - even under heavy load. An optional footswitch keeps hands free during busy production runs.
Motor Options
| HP | kW | Volts | Phase | Hz | Amps | Type |
|---|---|---|---|---|---|---|
| 5 hp (standard) | 3.7 kW | 208–230/460 | 3-phase | 60 Hz | 14.8–14/7 | TEFC |
| 5 hp | 3.7 kW | 230 | 1-phase | 60 Hz | 23 | TEFC |
| 5 hp | 3.7 kW | 220/380–415 | 3-phase | 50 Hz | 14.8/8.6–8.6 | TEFC |
| 7.5 hp (optional) | 5.6 kW | 208–230/460 | 3-phase | 60 Hz | 22–20.2/10.1 | TEFC |
| 7.5 hp | 5.6 kW | 220/380/440 | 3-phase | 50 Hz | 22/12.7/11 | TEFC |
Key Specifications
- Hopper Capacity: 140 lb (63.5 kg)
- Grinding Output: Up to 68 lb/min (31 kg/min)
- Grinding Head: Size-32 stainless bowl, ring, and auger (Enterprise or Unger)
- Auger Motor: 5 hp standard / 7.5 hp optional (TEFC)
- Electrical: Watertight magnetic switch; thermal overload and under-voltage protection; 8 ft 4-wire power cord
- Construction: Stainless steel hopper, lid, paddle, frame, and legs
- Crated Weight: 610 lb (277 kg) at 5 hp / 725 lb (329 kg) at 7.5 hp
- Crated Dimensions: 49" L × 37" W × 65" H
Safety & Reliability
- Magnetic safety interlock on hopper lid
- Watertight magnetic switch with overload protection
- Tandem gear reducers with mechanical clutch
- Reversible mixer safety cover
- Washdown-ready stainless construction throughout
Options & Accessories
- Pneumatic or electric footswitch
- Unger head components
- Stainless or standard casters
- Meat-lug holder rods
- 1st-grind feed paddle
- Knife & plate sets (various hole sizes)
Ideal Applications
- Supermarkets and butcher shops with daily high-volume grinding needs
- Meat processors requiring consistent output under heavy load
- Operations requiring mixing and grinding in a single compact machine
EESi Service Support
EESi Food Service supports BIRO equipment across Alberta with preventative maintenance, repair, and parts. Contact us to discuss service plans and parts availability for your AFMG-2448.
Contact EESi Food Service for current pricing, lead times, and availability.
