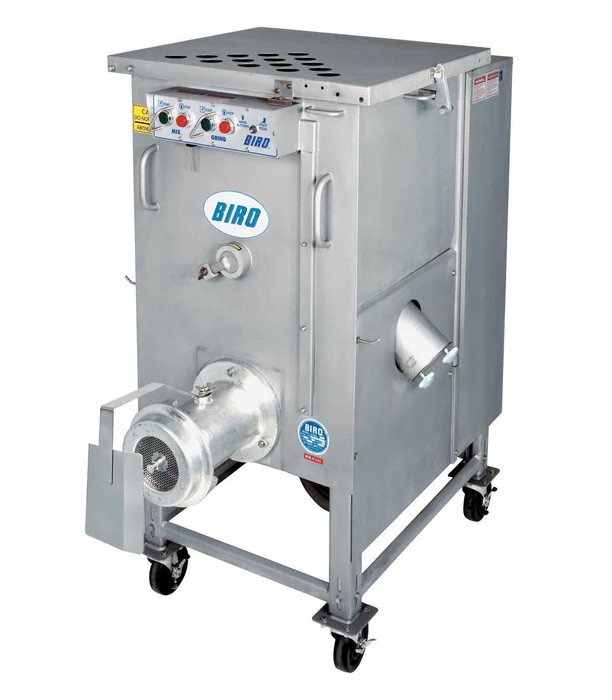

BIRO AFMG-52 Mixer Grinder
BIRO AFMG-52 Mixer Grinder
BIRO AFMG-52 Mixer Grinder
The BIRO AFMG-52 is built for serious production. With a 200 lb stainless hopper (400 lb optional), 7.5 hp auger motor (10 hp optional), size-52 grinding head, and output up to 100 lb per minute, the AFMG-52 is engineered for large supermarket meat rooms, mid-size processors, and HRI plants that need maximum throughput every shift. Its roller-chain auger drive and separate mixer-drive interface maximize torque, reduce wear, and keep maintenance straightforward - backed by BIRO’s reputation for reliability since 1921.
High-Throughput Mixing & Grinding
The AFMG-52’s size-52 hot-tin-dipped cast-iron bowl, ring, and auger, combined with a 1.75 hp mixer motor and standard 2nd-grind paddle, deliver smooth, uniform product mix and fast, consistent grind cycles - even with dense product under continuous load. An optional 400 lb hopper and extended leg options make it adaptable to high-volume environments and ergonomic floor layouts.
Motor Specifications
| Function | HP | kW | Voltage | Phase | Hz | Amps |
|---|---|---|---|---|---|---|
| Auger (standard) | 7.5 hp | 5.6 kW | 208–230/460 | 3-phase | 60 Hz | 24–22/11 |
| Mixer | 1.75 hp | 1.3 kW | 208–230/460 | 3-phase | 60 Hz | 4.87–4.21/2.10 |
| Auger (optional) | 10 hp | 7.5 kW | 208–230/460 | 3-phase | 60 Hz | 31–28/14 |
| Auger (575V) | 7.5 hp | 5.6 kW | 575 | 3-phase | 60 Hz | 9.1 |
| Mixer (575V) | 1.75 hp | 1.3 kW | 575 | 3-phase | 60 Hz | 1.96 |
Key Specifications
- Hopper Capacity: 200 lb (91 kg) standard / 400 lb (182 kg) optional
- Grinding Output: Up to 100 lb/min
- Grinding Head: Size-52 hot-tin-dipped cast-iron bowl, ring, and auger
- Auger Drive: Single-reduction roller-chain drive (poly-belt optional)
- Mixer Drive: Heavy-duty interface gear system
- Power Cord: 12 ft heavy-gauge (plug included on select models)
- Casters: Total-lock antimicrobial casters standard
Weights & Dimensions
- Uncrated: 759 lb (343 kg)
- Carton Packed: 863 lb (391 kg)
- Wood Crated: 962 lb (436 kg)
- Crated Dimensions: 50" L × 36" W × 66" H
Safety & Reliability
- Magnetic safety interlock on hopper lid
- Watertight magnetic switch with overload and under-voltage protection
- Tapered roller bearings for long auger life
- Heavy-gauge stainless construction engineered for daily washdown
Options & Accessories
No-Charge Options:
- No inlet
- Size-52 right-hand 35° hopper feed inlet
- 1st-grind paddle
Extra-Cost Options:
- 10 hp auger motor
- 400 lb hopper
- Poly-belt auger drive
- Size-52 left-hand 35° hopper feed inlet
- Stainless bowl, ring, auger (Enterprise or Unger)
- Electric or pneumatic footswitch
- Extra-long stainless legs (33"–42" bowl height)
- Tandem-operation connections
- Accessory cleaning/drying/storage rack
- Size-52 knife & plate sets
Ideal Applications
- Large supermarket meat rooms requiring maximum daily throughput
- Mid-size meat processors and HRI plants
- Operations needing scalable hopper capacity or tandem-machine configurations
EESi Service Support
EESi Food Service supports BIRO equipment across Alberta with preventative maintenance, repair, and parts. Contact us to discuss service plans and parts availability for your AFMG-52.
Contact EESi Food Service for current pricing, lead times, and availability.
